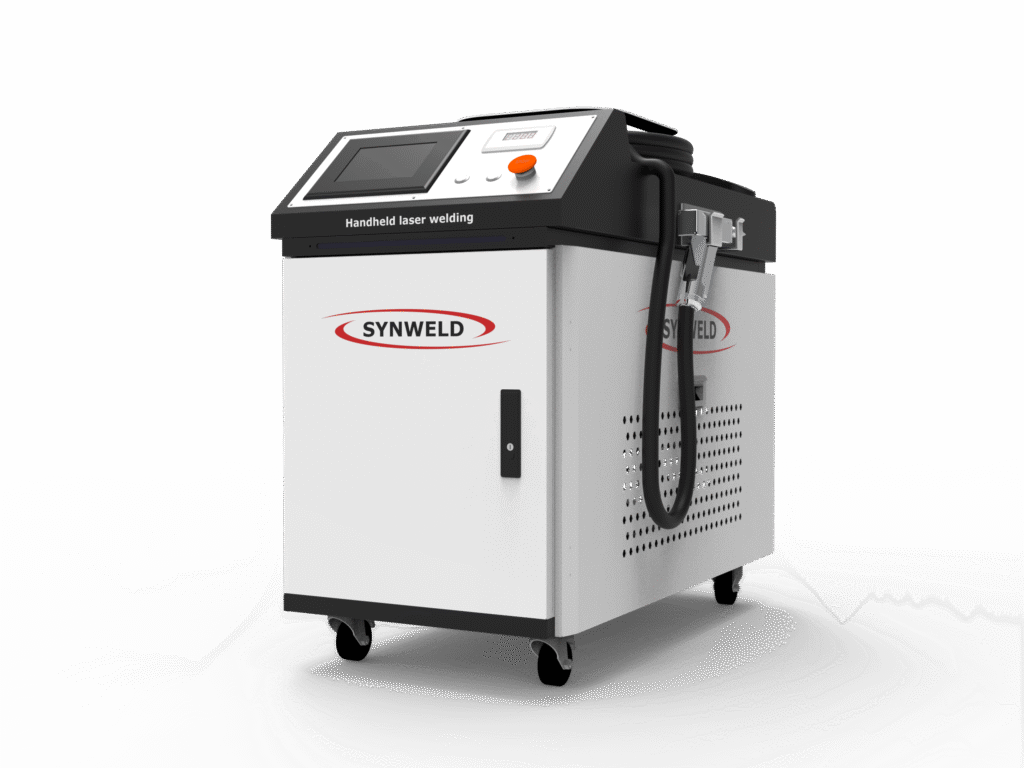

Synweld Handheld Laser Welder
The Future of Fabrication
Experience the future of fabrication. The Synweld Laser Welder bridges the gap between ease of use and industrial precision. Designed to replace TIG and MIG for thin-to-medium gauge metals, this machines creates deep penetration welds with minimal heat-affected zones.
Zero Learning Curve: Master professional welds in hours, not years.
Blazing Speed: Up to 4x faster than traditional TIG welding
Consistent Quality: Perfect results across steel, aluminium, and brass.
Limited processing: Minimal heat zones mean no grinding or polishing needed.
Applications
Proven performance across 16+ major sectors including Automotive, HVAC, and Architecture. Laser welding can weld a range of materials including:
Carbon Steel
Stainless Steel
Aluminum
Copper
Titanium

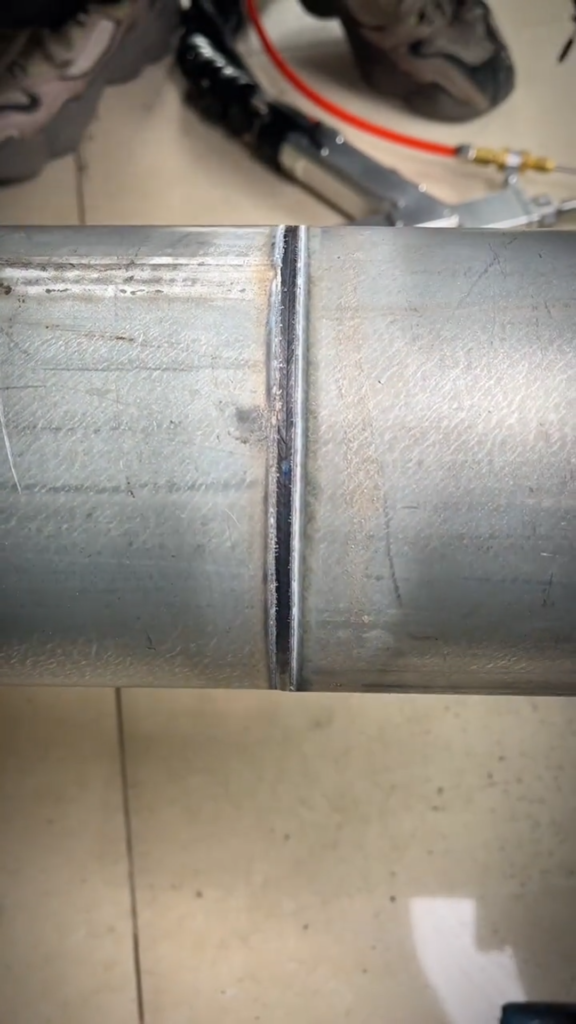

Example Welds with Laser Welder

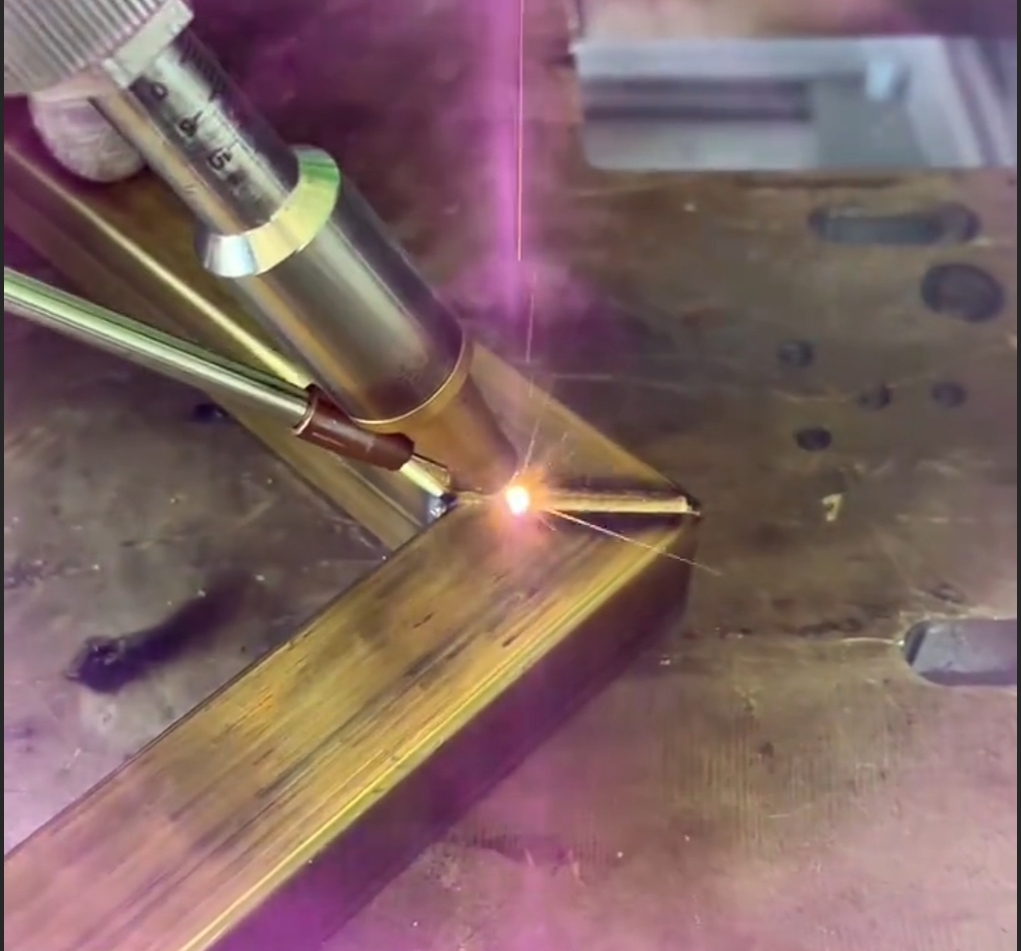

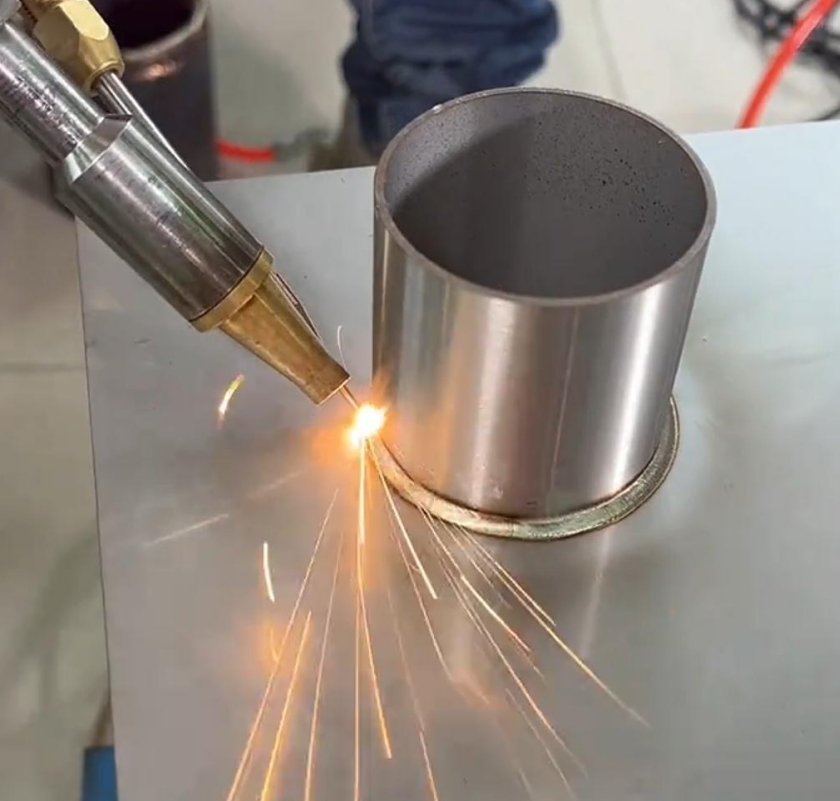

Laser Welding In Action
Technical Specifications
| Feature | Synweld Laser Welding Machine 1500W | Synweld Laser Welding Machine 3000W |
|---|---|---|
| Laser Power | 1500W | 3000W |
| Max Weld Penetration | Up to 4.0mm | Up to 8.0mm |
| Machine Dimensions | 1039 x 460 x 741 mm | 1039 x 460 x 741 mm |
| Machine Weight | 85 KG | < 95 KG |
| Torch Cable Length | 10 Meters | 10 Meters |
| Wire Feeding Speed | 0 – 120 mm/s | 0 – 120 mm/s |
| Supported Wire Diameter | 0.8 / 1.0 / 1.2 / 1.6 mm | 0.8 / 1.0 / 1.2 / 1.6 mm |
| Working Voltage | AC 220V (1-Phase) | AC 380V (3-Phase) |
| Cooling System | Integrated Water Chiller | Integrated Water Chiller |
